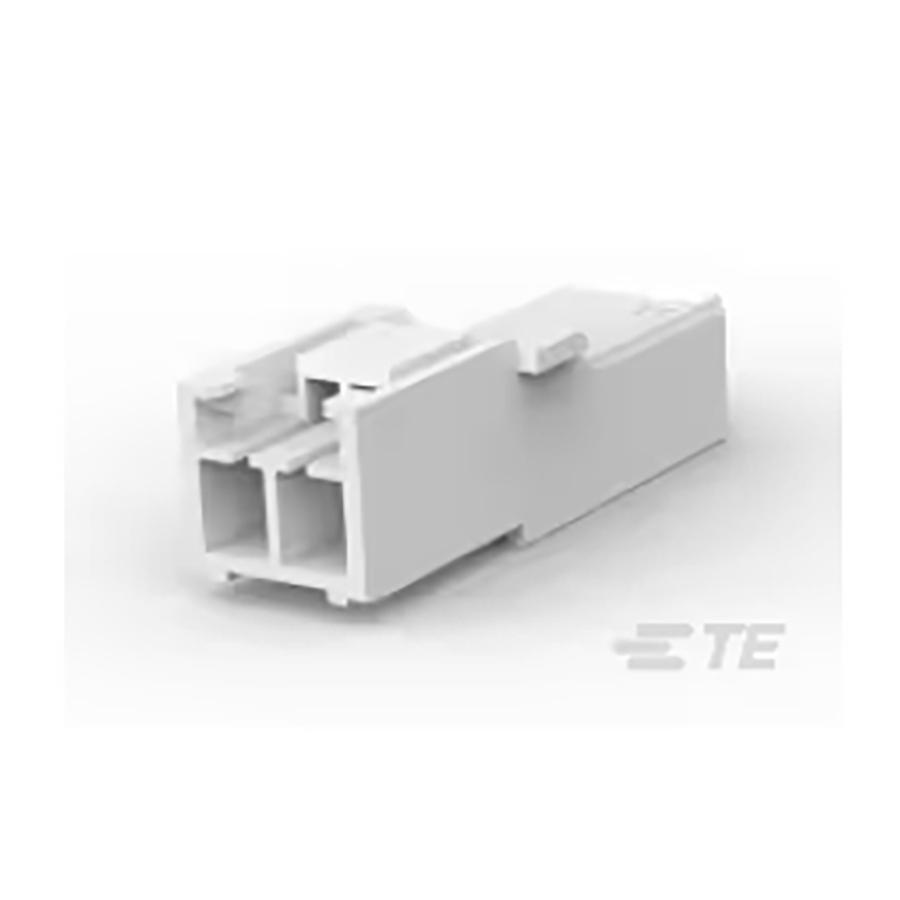

1-176282-1
Manufacturer:
TE Connectivity
Mfr.Part #:
1-176282-1
Datasheet:
Description:
Power Connectors Cable Voltage Rating:300 V Tab Socket (Female)
| Parameter | Value |
|---|---|
| Length | 28.956 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -22 °C |
| Number of Pins | 2 |
| Height | 8.4 mm |
| Packaging | Bag |
| Voltage Rating | 300 V |
| RoHS | Compliant |
| Pitch | 3.9624 mm |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Operating Supply Voltage | 300 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Natural |
| Gender | Socket (Female) |
| Number of Contacts | 2 |
| ELV | Compliant |
| Connector Type | Tab |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Polyamide |
| Connector System | Wire-to-Wire |
| Housing Color | Natural |
| Number of Power Positions | 0 |
| Number of Signal Positions | 0 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Contact Retention | Without |
Stock: 454
Distributors
pcbx
pcbxUnit Price$0.28666
Ext.Price$0.28666
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.28666 | $0.28666 |
| 10 | $0.22896 | $2.28960 |
| 50 | $0.20022 | $10.01100 |
| 100 | $0.17509 | $17.50900 |
| 500 | $0.16121 | $80.60500 |
| 1000 | $0.15287 | $152.87000 |
